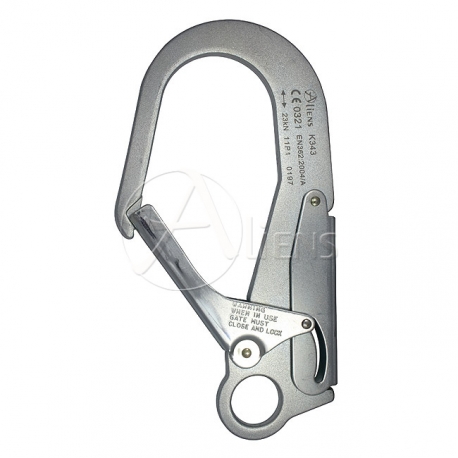

Sicherheitshaken M Snap Hook Vergrößern
Abbildung kann vom Produkt abweichen

Aliens
Sicherheitshaken M Snap Hook

K343

0608819045863

Neu

Der ALIENS MEDIUM SNAP HOOK aus Stahl ist eine gute Alternative zu den weitverbreitetet und sogenannten Aluminium Firehooks / Gerüsthaken oder Rohrhaken.

Mehr Infos

EAN Code

EAN Code
EAN Code: 0608819045863

EAN Code

EAN Code
EAN Code: 0608819045863

Produktbeschreibung



ALIENS Steel Firehook Sicherheitshaken M K343

Der ALIENS MEDIUM SNAP HOOK aus Stahl ist eine gute Alternative zu den weitverbreitetet und sogenannten Aluminium Firehooks / Gerüsthaken oder Rohrhaken. Der ALIENS MEDIUM SNAP HOOK weist die gleiche Maulöffnung von 60 mm und eine ähnliche Bruchlast von 23 kN auf, wie die weitverbreiteten Haken aus Aluminium. Allerdings hat der ALIENS MEDIUM SNAP HOOK eine sehr viel kleinere und flachere Nas, besser geeignet für den Einsatz in engen Anschlagpunkten. Haken aus Stahl sind weit weniger zerbrechlich oder „spröde“, was ein großer Vorteil gegenüber den Haken aus Aluminium ist. Eine ungewollte oder unerwartete Positionierung in „Über-Kante“-Position oder „Knicklast“ ist schlecht und sollte vermieden werden, aber im den Fall der Fälle wird sich der Haken aus Stahl erst einmal verbiegen und nicht sofort brechen. Ein nicht zu verachtender Sicherheitsaspekt.

Last but not least kommt natürlich auch der wirtschaftliche Aspekt ins Spiel. Ein ALIENS MEDIUM SNAP HOOK ist deutlich preiswerter als die gleiche Alternative aus Aluminium.

Wir bieten auch eine große Auswahl an Y-Falldämpfern mit Seil- oder elastischen Verbindungen zu sehr günstigen Preisen an. Eine Übersicht finden Sie hier: Y-Falldämpfer


ALIENS Steel Firehook Safety Snap Hook M K343

The ALIENS MEDIUM SNAP HOOK made of steel is another solution to the so called aluminium made firehooks / scaffold hooks or tubular hooks. The ALIENS MEDIUM SNAP HOOK shows the same gate opening of 60 mm and a similar breaking load of 23 kN as the hooks made of aluminium. However, the ALIENS MEDIUM SNAP HOOK has a much smaller and flatter nose for use in much narrower anchoring points. Steel hooks are far less fragile or “brittle”, which is quite an advantage to the hooks made from aluminium. An unwanted or unexpected positioning in “over edge” position or “kink load” is bad and should be avoided but, just in case, the hook made of steel will bend and not break. Another aspect in terms of safety.

Last but not least the economical aspect comes into play. An ALIENS MEDIUM SNAP HOOK has a significant lower price as the same alternative made of aluminium.

We also offer a wide range of Y fall absorbers with rope or elastic connections for very reasonable prices. Find an overview here: Y fall absorbers

Technische Daten

Mindestbruchlast [kN] 23
Material Stahl
Schnapperöffnung [mm] 60
Gewicht ca. 550 g
Identifikation Individuelle Nummerierung
Normen CE • EN 362
UVP 14,95 €
